C08LD004

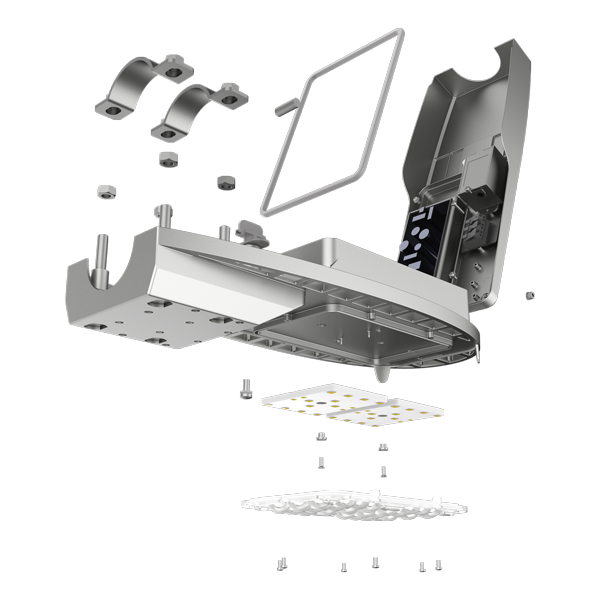

C08LD004 LED street light products adopt the world's first COC innovative structural combination, breaking the limitations of the traditional aluminum substrate heat sink. It dissipates heat faster, maintains lower chip junction temperature, and provides better stability.

High brightness maintenance rate at longer service life operation. The unique structure design of the products is innovative, patented “Independent Pixel Heat Sink”, which is water-proof, moisture-proof, transparent heat, easily to assemble and maintain.

Product Specification

· Model: C08LD004
· IP Rating: IP66
· Luminous Efficacy: 130lm/W
· CRI: ≥70
· Power Factor: ≥0.95
· Wattage: 25W ~ 180W
· Input Voltage: 90 ~ 264V AC
· Color Temperature: 3000K ~ 6000K
· Working Temperature: -40°C ~ 55°C
· Working Humidity: 10%~95%RH, non-condensing
· Service Life: 50000 hours
· Material: Aluminum Alloy + Ceramic Pixel + PC

Applications:

Sidewalks, squares, factory areas, pedestrian streets, cycleways, emergency lanes, residential roads, primary roads, country roads, parks, highways, bridges, expressways, urban elevated roads, arterial roads, and so on.

Product Features

· Excellent thermal performance & hollow structure design

By self-developed ceramic heat dissipation technology, it helps prolong the product lifespan to 50000 hours, which is 50 times higher than HPS.


· Energy-efficient & sustainable

The overall lighting effect is 130lm/W, pure light source with no UV/IR, serving higher brightness and less power consumption, and meet the 3.0G vibration test requirements for luminaire installation.


· Professional optical lens design

Made of PC material, which provides better light transmittance, and with the pixel structure design to effectively reduce dust adhesion on the surface, reducing lighting decay and maintenance cost.


· Reliable & durable

Ceramic anti-corrosion material with superior insulation properties non-glass design that eliminates the risk of glass fragmentation, and the 10KV surge protection ensures excellent resistance to lightning strikes, With simple structure design that is cost-effective and compatible with multiple control schemes, providing optimal solutions for different applications.
