The CVR&CXR Series is a next-generation ultra-lightweight LED rental display engineered for versatile, high-performance use in demanding rental settings. Featuring die-cast magnesium alloy cabinets, the series enables single-operator handling and snap-lock assembly, reducing setup time and labor costs without compromising durability. A modular design with front/rear access and integrated power systems ensures quick maintenance and streamlined on-site adjustments.
Advanced corner protectors enhance impact resistance during transport and installation, while seamless curved connections and 45° chamfered splicing enable creative shapes from circular stages to geometric cubes. The series supports mixed cabinet types (standard, long, curved lock, 45° chamfer) for flexible configurations in multi-rental setups.
CVR series (≥800 nits) and CXR series (≥4000 nits) leverage advanced heat dissipation for stable performance, color accuracy, and 7680 Hz refresh rates. Ideal for immersive stages and large events, the CVR&CXR Series delivers unmatched adaptability and visual excellence.
· Model: CXR
· Pixel Pitch: 2.97mm, 3.9mm
· Cabinet Resolution(WxH): 168x168, 128x128, 168x336, 128x256
· Refresh Rate: ≥7680Hz
· Power Consumption: Max. 534W/m²(500mm×500mm), Avg. 213.6W/m²(500mm×500mm), Max. 587.56W/m²(500mm×1000mm), Avg. 235.1W/m²(500mm×1000mm)
· Module Size(WxH): 250mm×250mm
· Cabinet Size(WxHxD): 500mm×500mm×91mm / 500mm×1000mm×91mm
· Material: Die-Cast Magnesium Alloy
Live events, Stage, Cinema, shopping mall, retail store, brand store, subway station, and so on..
· Ultra-Lightweight Cabinet Enables Single-Person Handling and Operation

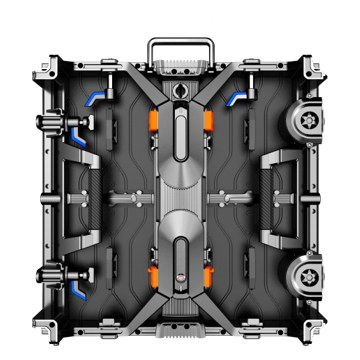

· Modular Cabinet Design for Easy Front or Rear Maintenance
· Corner Protection: Comprehensive Impact Resistance for Modules

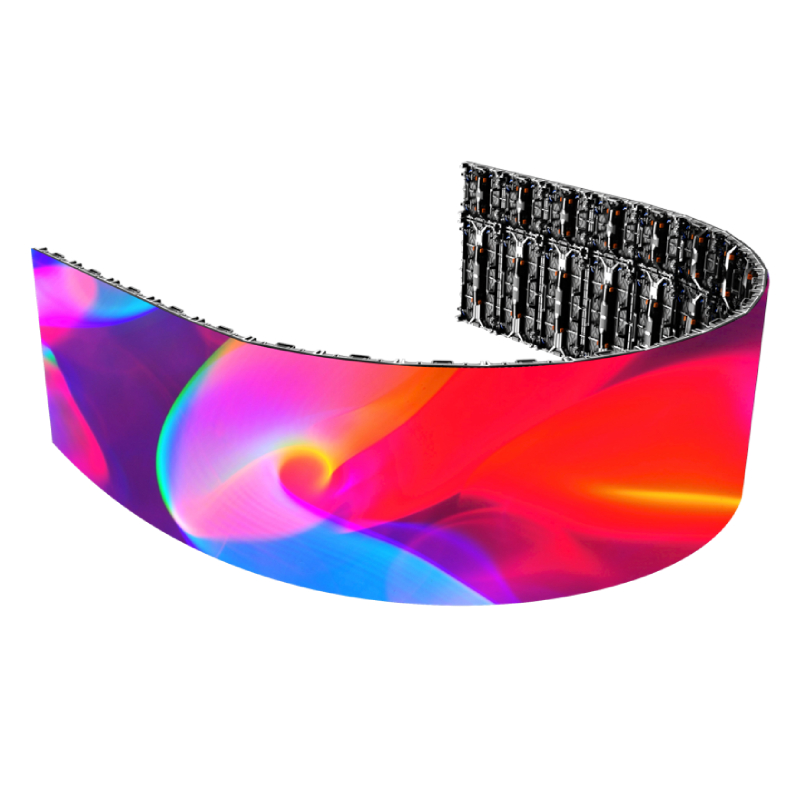

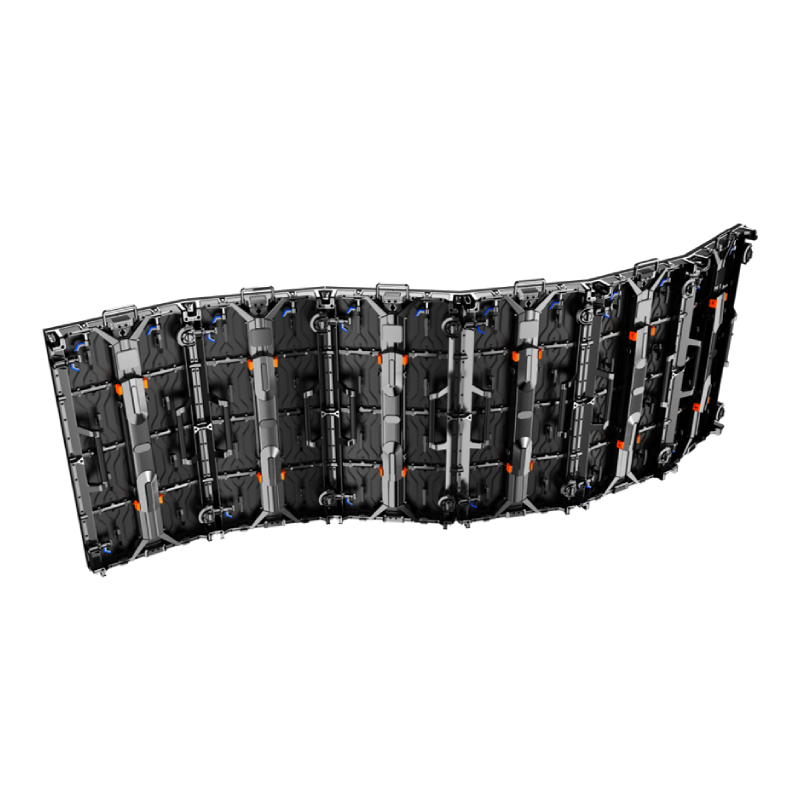

· Seamless Curved Connections for All Kinds of Creative Designs

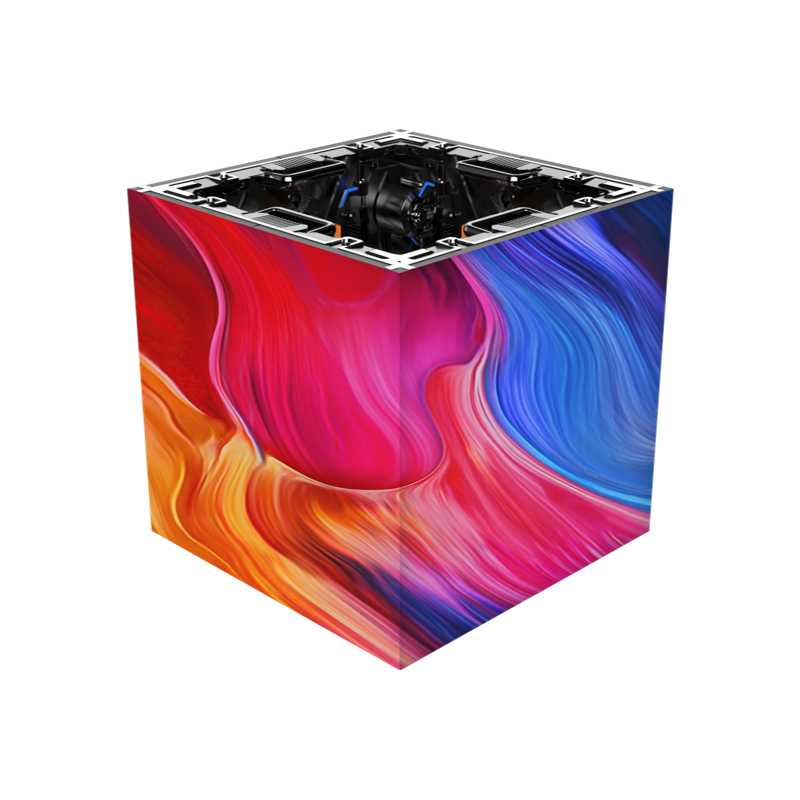

· Precise Right-Angle Splicing for Diverse Creative Shapes

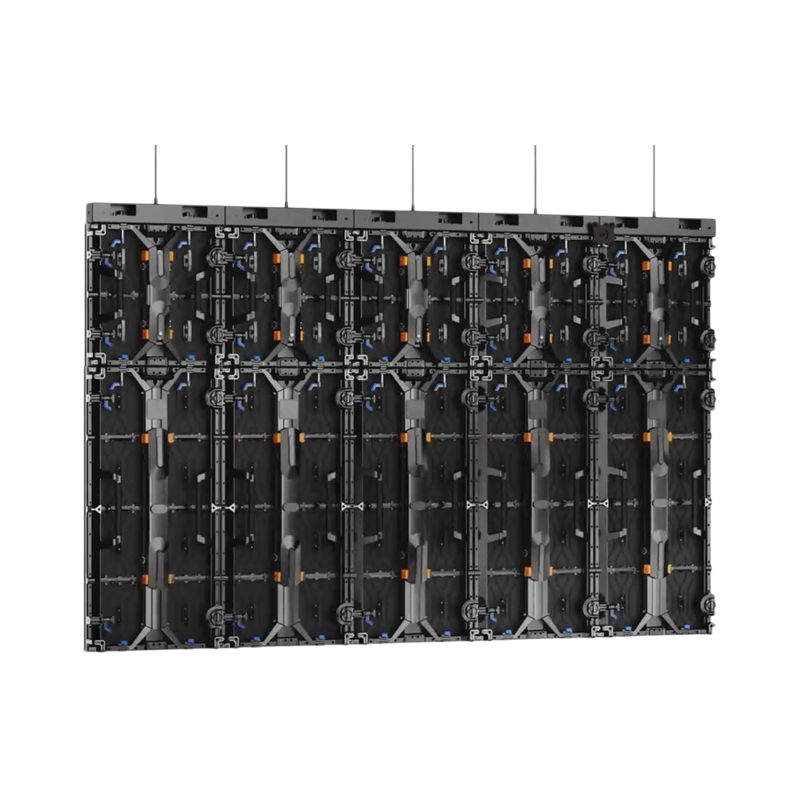

· Multiple Installation Options for Versatile Applications

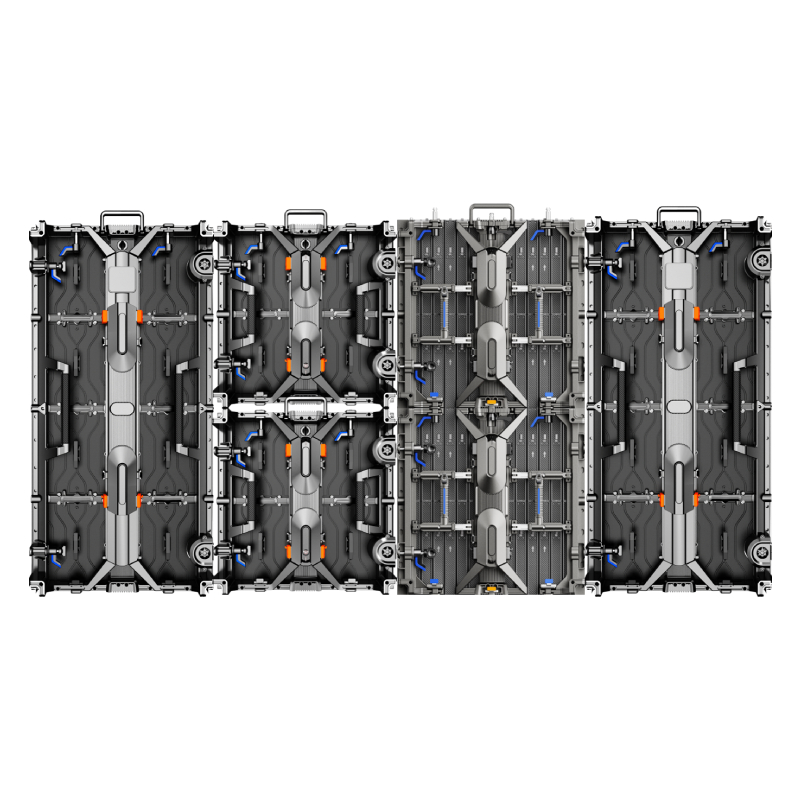

· Mix & Match Cabinets in the Same Series – Flexible Splicing with standard cabinets, long cabinets, Curved Lock & 45°Chamer Cabinets
· Outstanding Display Performance for the Most Demanding Rental Applications
· The Advanced Heat Dissipation Design Ensures Stable and Reliable Display Performance
