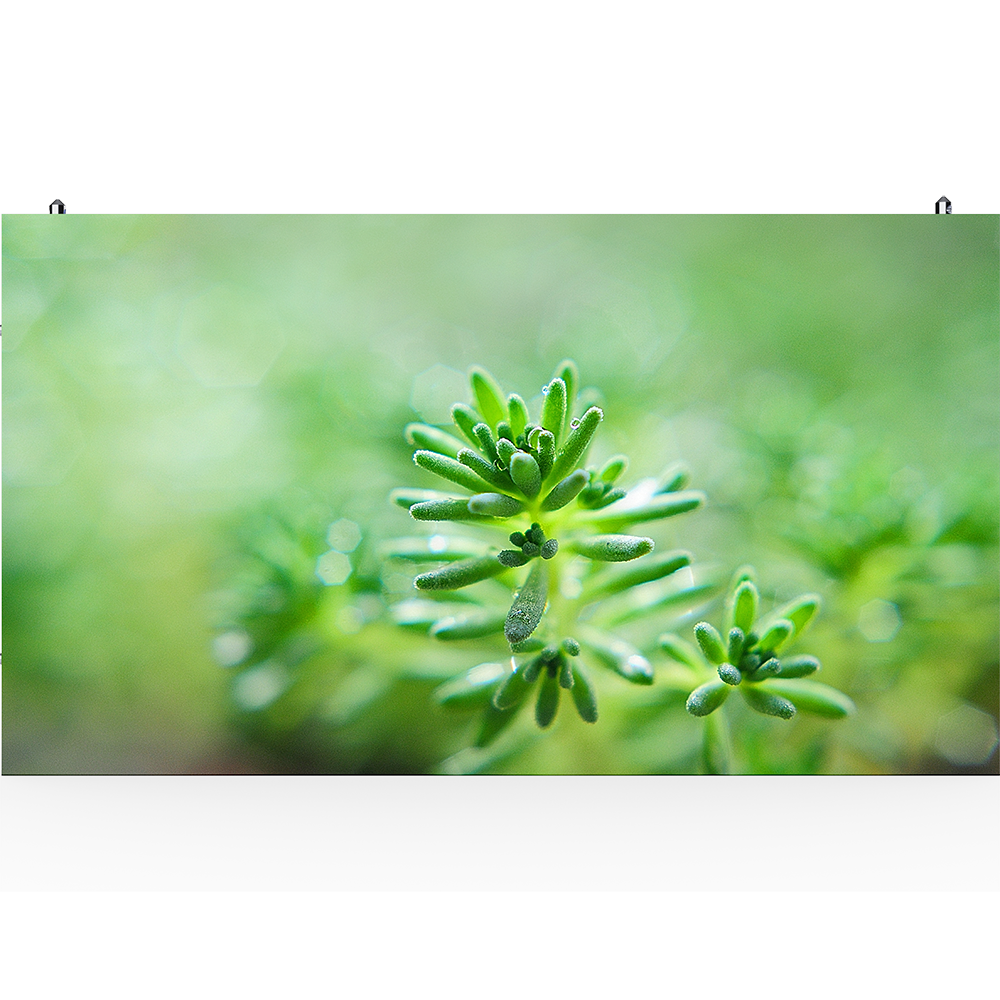

VEⅢ MCOB

VEIII MCOB LED display products are outdoor waterproof and water resistant, designed and made for harsh outdoor environment, with independent module design, designed and made for easy splicing and customization.

Ultra thin and light weighted cabinet, made easy to be transported and reduce the weight of the overall splicing structure.

Product Specification

· Model: VEIII MCOB
· Pixel Pitch: 0.7mm, 0.8mm, 0.9mm
· Cabinet Resolution(WxH): 768x432, 672x378, 640x360
· Refresh Rate: 7680Hz, 3840Hz, 3840Hz
· Power Consumption: Max.300W/m², Avg：75W/m²
· Input Voltage: 100~240V AC
· Color Temperature: 3000~9300K（Adjustable）
· Maximum Brightness: 1500cd/㎡
· Contrast Ratio: ≥10000:1
· Module Size(WxH): 150mm×168.75mm
· Cabinet Size(WxHxD): 600mm×337.5mm×29mm
· Material: Die-cast Aluminum

Applications:

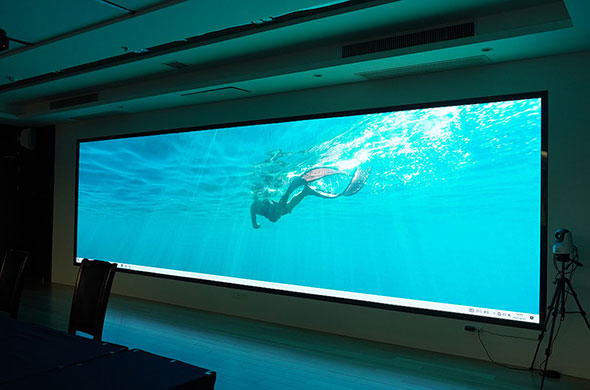

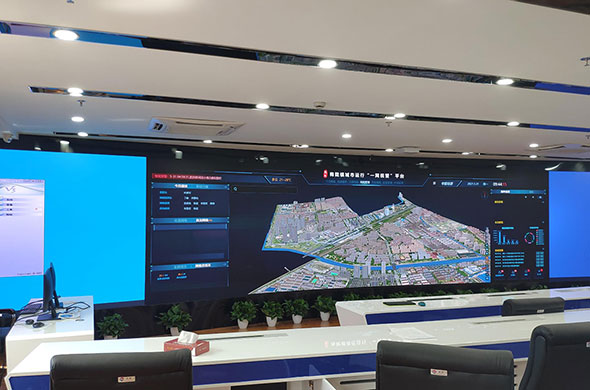

Conference rooms,meeting spaces,bars, restaurants,lounges,residential media rooms,event and banquet halls, and so on.

Free Consultation Download

Other Product Series

Product Features

· Non-reflective enclosure & high resolution:

New exterior surface treatment technology, extremely matte black, non-reflective display, vivid colors & fine details, 16:9 in size, with FUD, UHD, FUHD supported.

· Agile Structure:

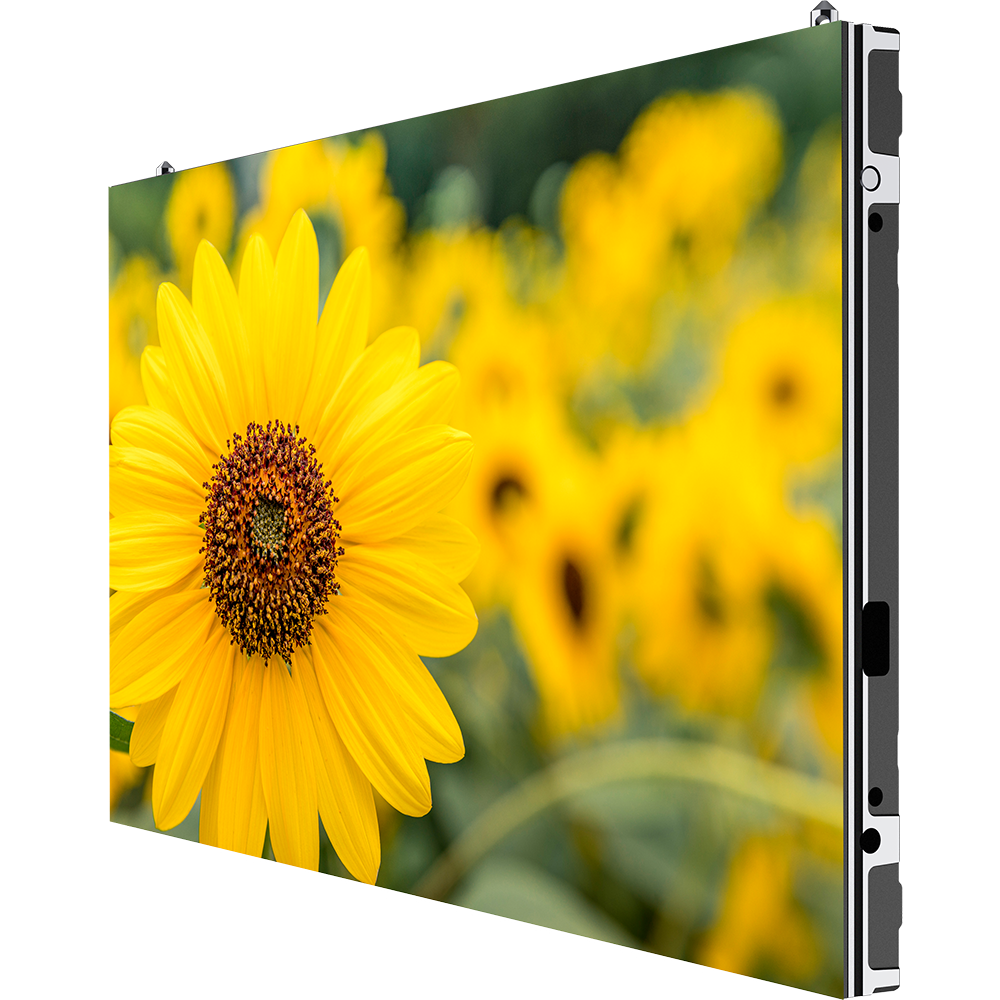

A single cabinet is only weighed 5kg and 29mm thin, it can be easily integrated and installed.

· Stable & reliable:

RGB full flip-chip technology, not easy to damage, dust-proof, moisture-proof, anti-bump, anti-oxidation, anti-static, anti-blue light.

Strong compressive performance, with anti-corrosion, anti-electromagnetic interference, anti-static and other features to ensure safe and reliable application.
