VMS-SLⅡ Series



EN12966 certificated that meets european traffic management standards and could be applied internationally



SMD LED with Optical lens design that keeps the light in 0°-15° to avoids any interference light out of the driver’s angle



Ultra brightness that it could be viewed from afar to have proper guidance for on-road drivers



Applications: freeways, arterial roads, expressway, highways, bridges, tunnels...


Contact Now


Product Description

The Variable Message Sign (VMS) signs display messages and instructions for the drivers  the real time traffic conditions. Since 1993, SANSI has led the way in VMS product development. Featuring L3 brightness, R3 contrast ratio, high IP level, SANSI VMS products fit any ITS application and offer industry-critical reliability, legibility, and serviceability.

Product Features

B6/B7, L3, L3*, C2, R3, T1,T3
Protocols:Profibus, TCP/IP, NTCIP, Modbus

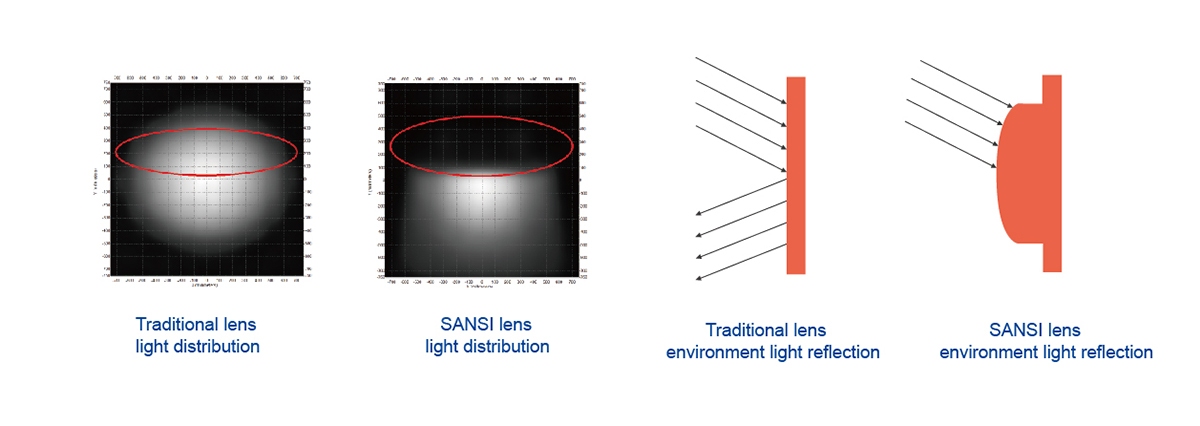

Excellent Lens structure:less sunshine reflection, higher contrast ratio

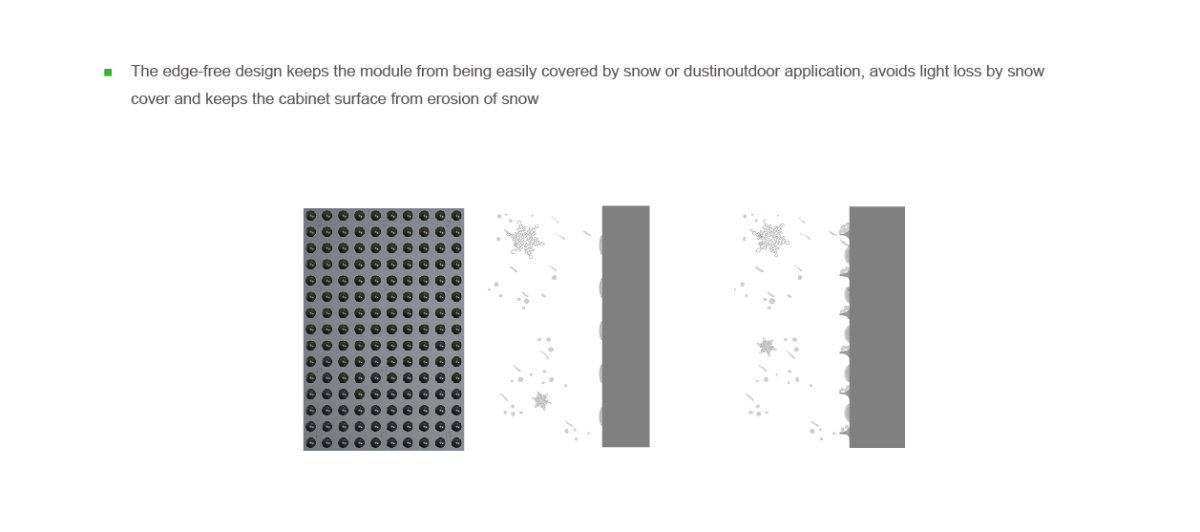

Edge-free design:prevent snow and dust, ensure display performance
Unique matte surface cabinet, higher contrast ratio

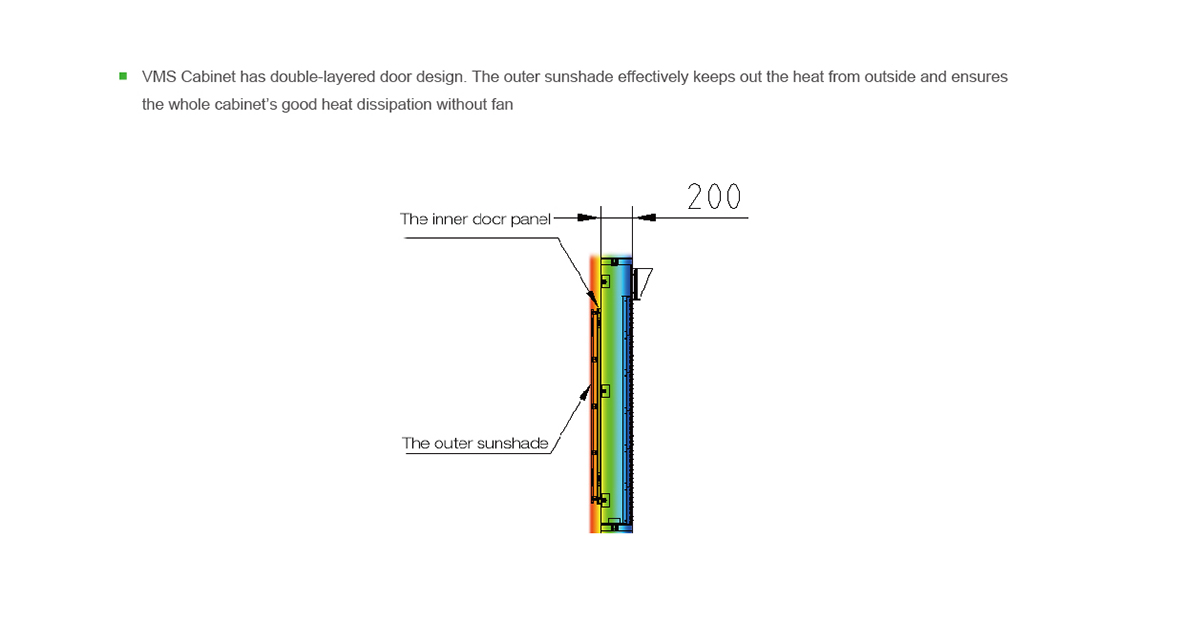

Double-layered cabinet door,ensure heat insulation
Auto-inspection system :pixel failure detection,power supply failure check, and thunder-proof check
Fanless design, low noise, low failure rate
N+1 back-up power supply, higher reliability

Product Image

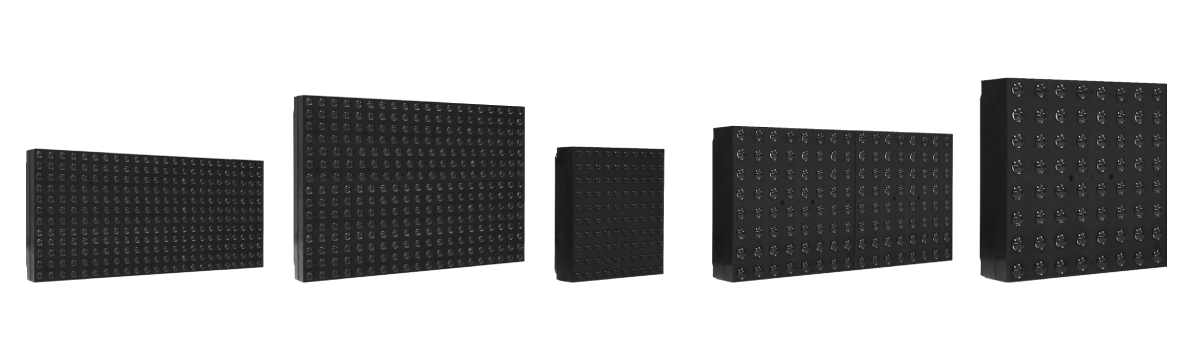

VMS PRODUCT PICTURES

Product Performance



Management System

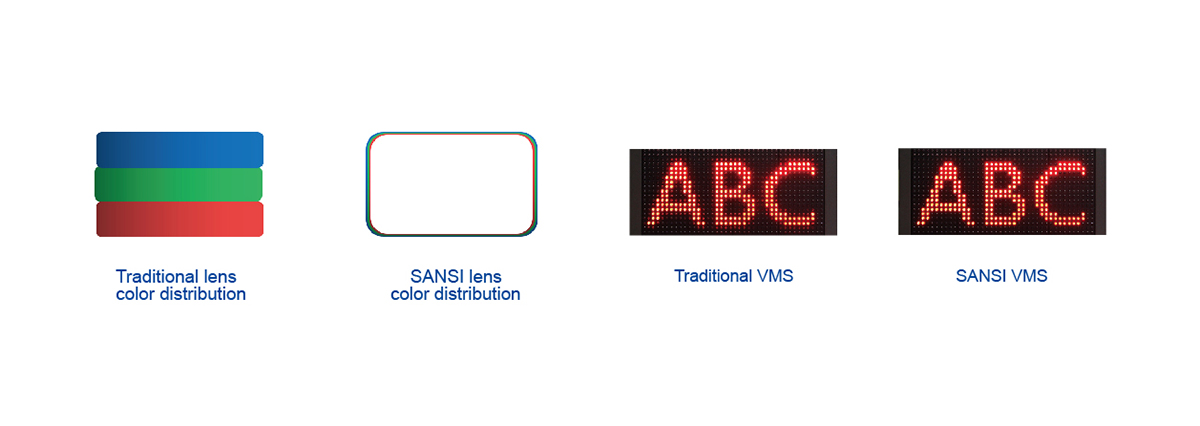

Outstanding Optical Performance







Superior Cabinet Structure





Excellent Heat Dissipation







What kind of LED products or service do you want ? Where are your projects ? If you are a Brand Distributor, Wholesaler, Retailer, Project Distributor or Developer; or just want to do Brand OEM, please leave us a message, we will have you a more accurate quotation in time.

Technical Parameters

Model VMS-SLⅡ Series
Material Aluminum,Stainless steel
Module Size(mm) 240*120,240*180,150*150,160*320,240*240
Contrast Ratio R3
Color C2
Beam Width B6
Interface RS485,RS232,Ethernet,3G,4G,GPRS,I/O
Protocol Profibus,TCP/IP,NTCIP,Modbus
Input Voltage 88-264VAC
Certification EN12966



Application

More of SANSI LED products' applications in its related scenarios, exclusive customizations with customers' specific requirements
