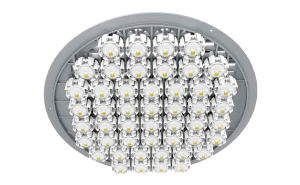

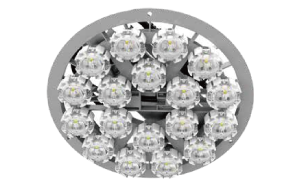

C21LP-EN LED retrofit kit is designed to replace HID or HPS in outdoor existing fixtures. It uses SANSI COC technology and unique optical lens design to ensure higher energy saving and reliable operation over committed lifetime, even in severe climate.
A broad range of lumen outputs with Nichia LED chip to ensure maximum efficiency at all lighting levels.
Wattage 30W, 60W, 90W, 120W, input voltage AC100-277V, meeting various application requirements.
Unique optical lens design, ensuring excellent light distribution.
Designed for operations under diverse environment from -35˚C to 55˚C.
Easy installation and serviceability with simple tools.
SANSI COC (Chip on Ceramic) Technology. Patented ceramic heat sink technology, faster heat dissipation, making for longer life class for luminaire.
Model | Wattage | Luminous Flux | Power Factor | CCT | CRI | IP Rating | Frequency | Lifetime |
---|---|---|---|---|---|---|---|---|
C21LP-EN 30W | 30W | 3600lm | 0.9 | 4000K | 70 | IP65 | 50Hz/60Hz | 50,000hrs |
C21LP-EN 60W | 60W | 7200lm | 0.9 | 4000K | 70 | IP65 | 50Hz/60Hz | 50,000hrs |
C21LP-EN 90W | 90W | 11000lm | 0.9 | 4000K | 70 | IP65 | 50Hz/60Hz | 50,000hrs |
C21LP-EN 120W | 120W | 14500lm | 0.9 | 4000K | 70 | IP65 | 50Hz/60Hz | 50,000hrs |
