C0830-TR

2,600-9,100 lumens, 130 lumens/watt

3G, IP66, 3,000K/4,000K/5,000K, Ra≥70

Lifespan 100,000hrs at 25℃, L80B10

Type I / Type II / Type III / Type IV optical system


Contact Now


Product Introduction

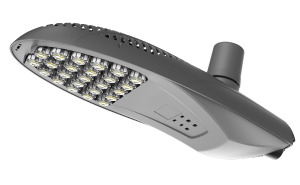

C0830-TR LED ceramic cobra-head street light adopts ceramic heat dissipation technology with hollow out structured design. It consists of three colors housing for different wattage, with easy maintenance, dust proof & water proof, and cost effective design. Professional lighting distribution provides uniformity and high brightness lighting. SANSI LED street lighting solutions are smart and versatile, so you can manage, maintain, and monitor the entire system simply and efficiently.



Features

Classy arc-shaped design with simplified style, high quality die-casting aluminum materials

Based on XQV2 ceramic pixel platform, ceramic heat dissipation system. (Patent No. : ZL 2012 2 0091432.4)

Structural design of air convection and proximal cooling, efficient heat dissipation which promotes a longer lasting light with superior performance

Hollow-structure design ensures good ventilation, effectively reducing wind resistance

Built-in LED power supply, self-designed IC, effectively reducing THD, energy efficient and cost saving

Solar energy power supply and conventional power supply are available, environmentally friendly

What kind of LED products or service do you want ? Where are your projects ? If you are a Brand Distributor, Wholesaler, Retailer, Project Distributor or Developer; or just want to do Brand OEM, please leave us a message, we will have you a more accurate quotation in time.

Technical Parameters

Model Wattage Power Factor Input Voltage CCT CRI Light Efficacy IP Rating Lifespan Temperature
C0830-TR 20W/30W ≥0.95 90-305VAC 3000K/4000K 70 130±5lm/W IP66 150,000hrs -40℃-55℃
C0830-TR 40W/50W/60W ≥0.95 90-305VAC 3000K/4000K 70 130±5lm/W IP66 150,000hrs -40℃-55℃

Application

More of SANSI LED products' applications in its related scenarios, exclusive customizations with customers' specific requirements
