LCS

EN12966 certificated that meets european traffic management standards and could be applied internationally

Optical lens design that keeps the light within 0°-15° to avoid any interference light out of the driver’s angle

Ultra brightness that it could be viewed afar to have proper guidance for on-road drivers

Applications: lanes, tunnels and bridges, freeways, arterial roads, expressways, highways, etc.

Product Description

Lane Control Signs are designed to maintain efficient traffic flow. SANSI’s energy-efficient, highly visible Lane Control Signs are optimized using high performance LEDs, a high contrast front mask and a specialized electrical design to effectively reduce energy consumption and minimize maintenance costs. It meets industrial standards with clear, legible and reliable messaging. It's a smart and cost-effective solution for a wide variety of traffic applications.

Product Features

EN 12966 certificated
Optical Lens design
B6/B7, L3, L3*, C2, R3,T1,T3
High-quality LED, long lifetime, low power consumption and few degradation
Real-time environmental monitoring with automatic Temperature & Humidity acquisition
Pixel failure self-detection, real-time error detection feedback
Front access or back access, easy to maintain
Multiple communication protocols available
Working temperature: -40℃~60℃
Suitable for lanes, tunnels and bridges, expressways and highways etc..

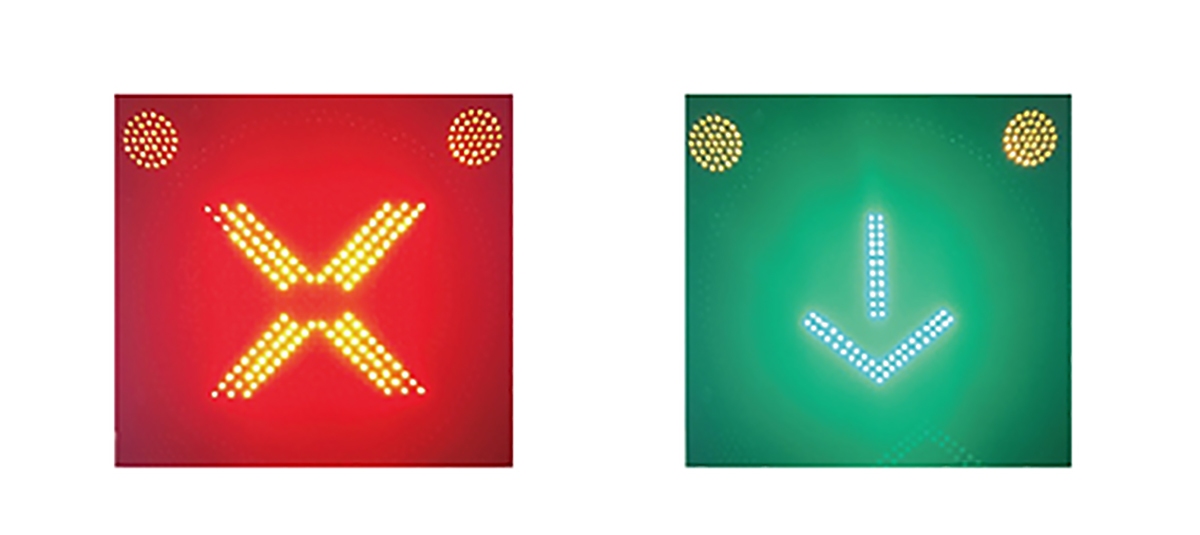

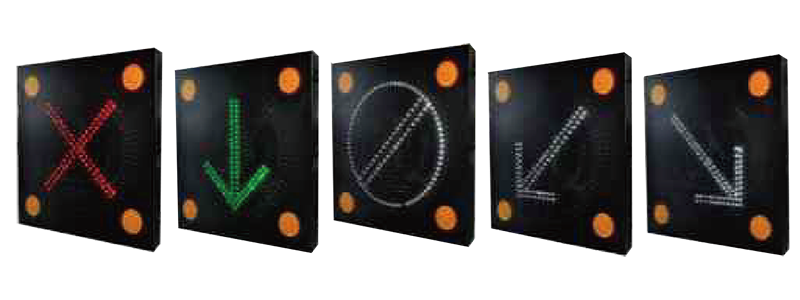

Product Image

LCS

What kind of LED products or service do you want ? Where are your projects ? If you are a Brand Distributor, Wholesaler, Retailer, Project Distributor or Developer; or just want to do Brand OEM, please leave us a message, we will have you a more accurate quotation in time.

Contact Now

Technical Parameters

Model	LCS Series
Material	Aluminum,Stainless steel
Module Size(mm)	300300,500500,700*600
Contrast Ratio	R3
Color	C2
Beam Width	B6/B7
Interface	RS485,RS232,Ethernet,3G,4G,GPRS,I/O
Protocol	Profibus,TCP/IP,NTCIP,Modbus
Input Voltage	88-264VAC
Certification	EN12966

Above parameters are typical values, which are customizable according to different project reqiurements.
