C0820-ZR

3,900-39,000 lumens, 130 lumens/watt

3G, IP66, 3,000K/4,000K/5,000K, Ra≥70

Lifespan 100,000hrs at 25℃, L80B10

Type I / Type II / Type III / Type IV optical system


Contact Now


Product Introduction

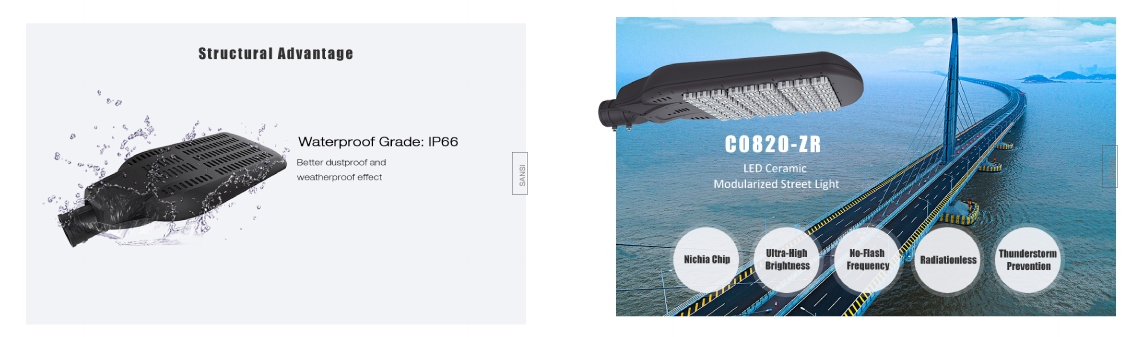

Ceramic Modular LED Street Light C0820-ZR features ceramic heat dissipation technology, high efficiency, low light degradation. It dramatically reduce energy consumption  by up to 50% compared to traditional lights and lower total cost of ownership. Adopting high temperature sintering method, it effectively reduced thermal resistance and improve seismic performance.

Features

Ceramic heat dissipation technology, based on XQ2 ceramic pixel platform, high efficient and long lifespan

No wire power design, supporting hot swapping, safe and reliable, Modular design, easy to installation and maintenance

Structural design of air convection and proximal cooling patented technology (patent number: 201721133174.0)

High temperature sintering technology, improving cooling performance and seismic performance

StarRiver intelligent dimming system, allowing further energy conservation

Self-produced built-in power supply, reducing THD effectively and supporting hot swapping, easy installation and on -site maintenance.

Vertical installation: 0°~15° adjustable,horizontal installation: ±15°adjustable, meeting various road lighting application requirements.

Highlights

What kind of LED products or service do you want ? Where are your projects ? If you are a Brand Distributor, Wholesaler, Retailer, Project Distributor or Developer; or just want to do Brand OEM, please leave us a message, we will have you a more accurate quotation in time.

Technical Parameters

Model Wattage Power Factor Input Voltage CRI Light Efficacy IP Rating Lifespan Temperature
C0820-ZR 60W-300W ≥0.95 90-305VAC 70 130±5lm/W IP66 150,000hrs -40℃-55℃

Application

More of SANSI LED products' applications in its related scenarios, exclusive customizations with customers' specific requirements
